19mm Optical Encoder switch
19 mm Optical Encoder switch
Thin thickness with Push-button switch function
|

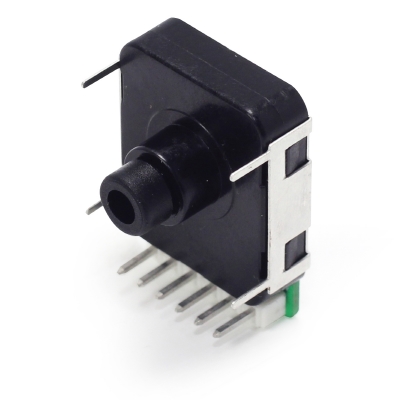

BTRES19G Series (Plasitc Housing) | |
- Plastic housing with Plastic shaft - 6.2 mm max. thin thickness construction - 1,000,000 life cycles with vertical / horizontal mounting type - 6 or 24 pulses per rotation with fine square wave of output - 24 detents of mechanical click push-button switch - Light weight : 5 g - Size : 19 X 25 mm |
  |
|
|

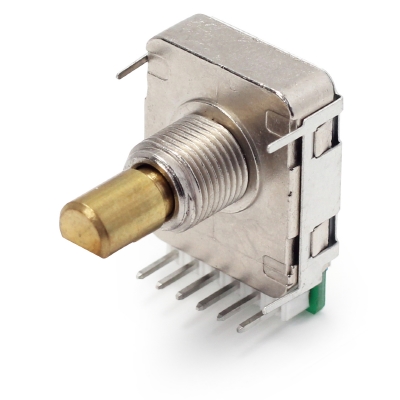

BTRES19G Series (Metal Housing) | |
- Zn diecasitng housing with metal shaft - 7 mm max. thin thickness construction - 1,000,000 life cycles with vertical / horizontal mounting type - 6, 16, 24 pulses per rotation with fine square wave of output - 16, 24 detents of mechanical click with push-button swtich - Light weight : 15 g - Size : 19 X 25 mm |
|
|
|

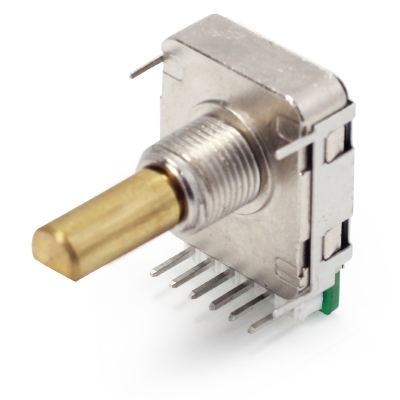

BTRES19D Series (Deep Push-button Function) | |
- 1 mm soft and deep traveling with push-button switch function - Zn diecasting housing with metal shaft - 7 mm max. thin thickness construction - 1,000,000 life cycles with vertical / horizontal mounting type - 6, 16, 24 pulses per rotation with fine square wave of output - 16, 24 detents of mechanical click with push-button switch - Light weight : 15 g - Size : 19 X 25 mm |
|
|
|

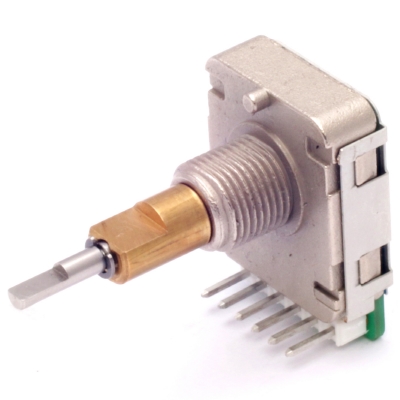

BTRES19G SERIES (Dual Shaft) | |
- Seperated push-button switch function - Zn diecasting housing with metal shaft - 7 mm max. thin thickness construction - 1,000,000 life cycles with vertical / horizontal mounting type - 6, 16, 24 pulses per rotation with fine square wave of output - 16, 24 detents of mechanical click with push-button switch - Light weight : 17 g - Size : 19 X 25 mm |
|
|
